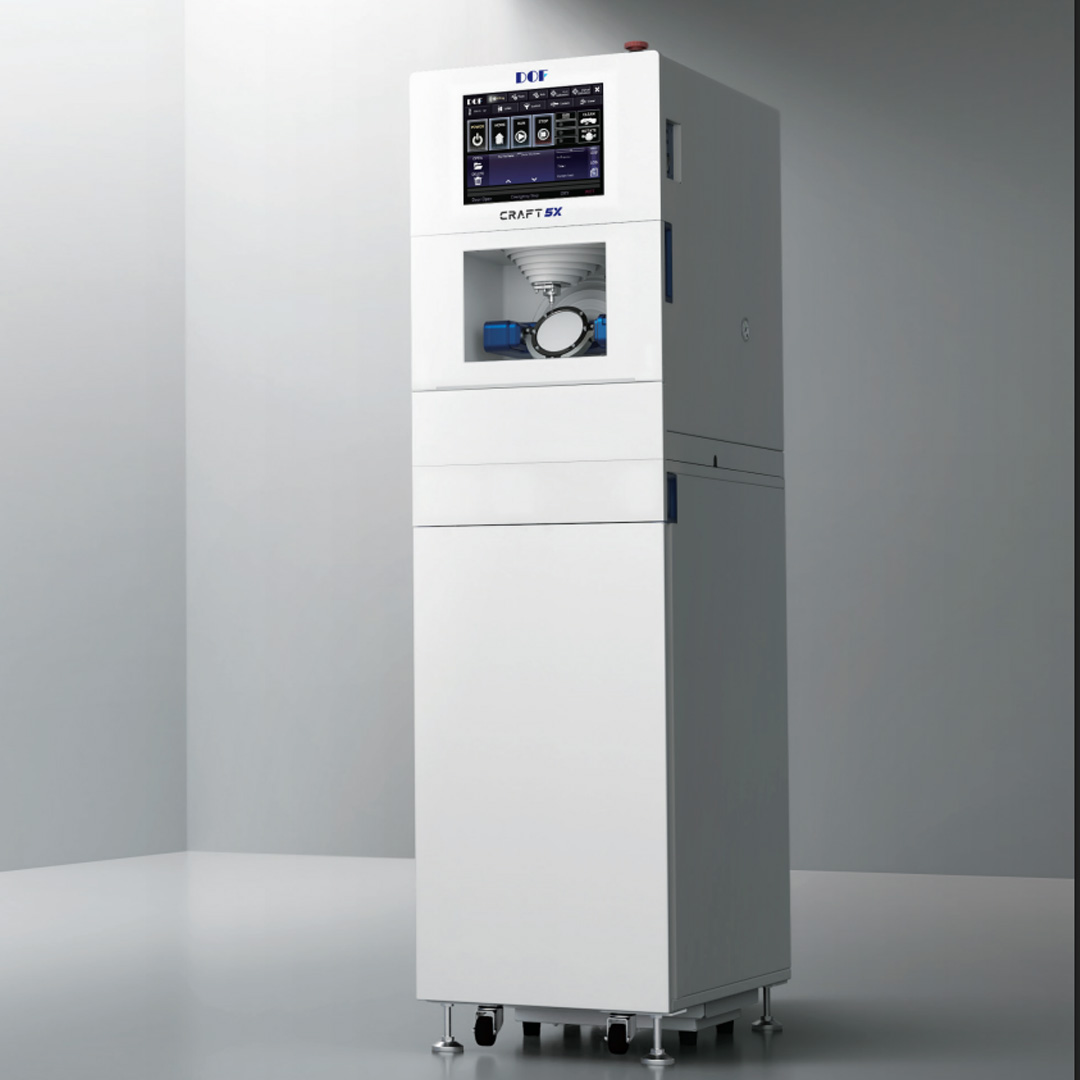

CRAFT 5X – All-in-One Milling Machine
Everything you imagined, in one compact and powerful system.
The CRAFT 5X redefines versatility in dental milling.

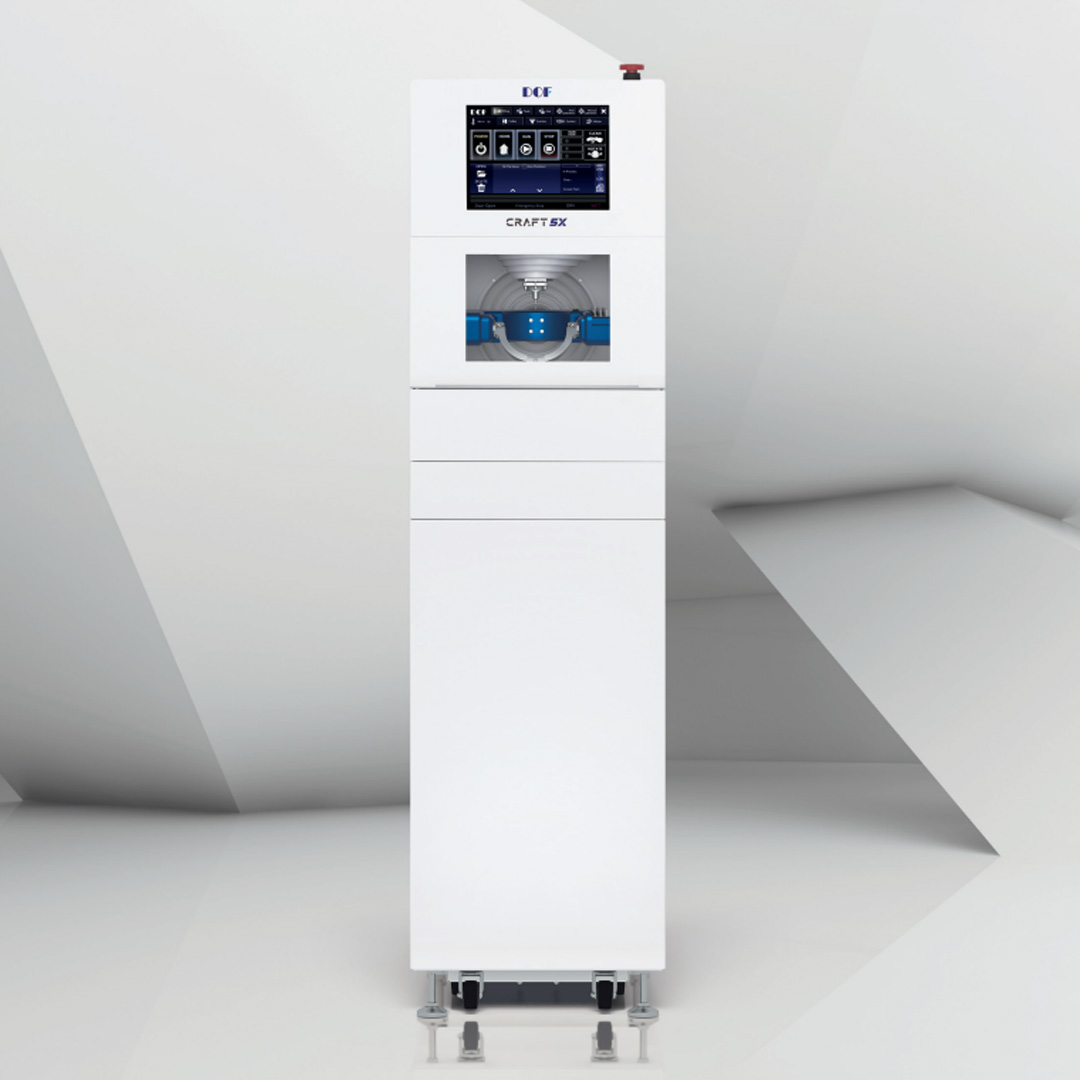

It goes beyond a conventional wet and dry milling machine — integrating a water tank, dust collector, and compressor into a single, streamlined unit.
This innovative design saves space, simplifies setup, and eliminates the need for external accessories.
Compact Strength, Unlimited Possibilities
The limitations of material and space are now a thing of the past.
The CRAFT 5X combines high performance, durability, and precision in a compact body, ensuring reliable results across a wide range of applications.
Advanced Technology, Superior Results

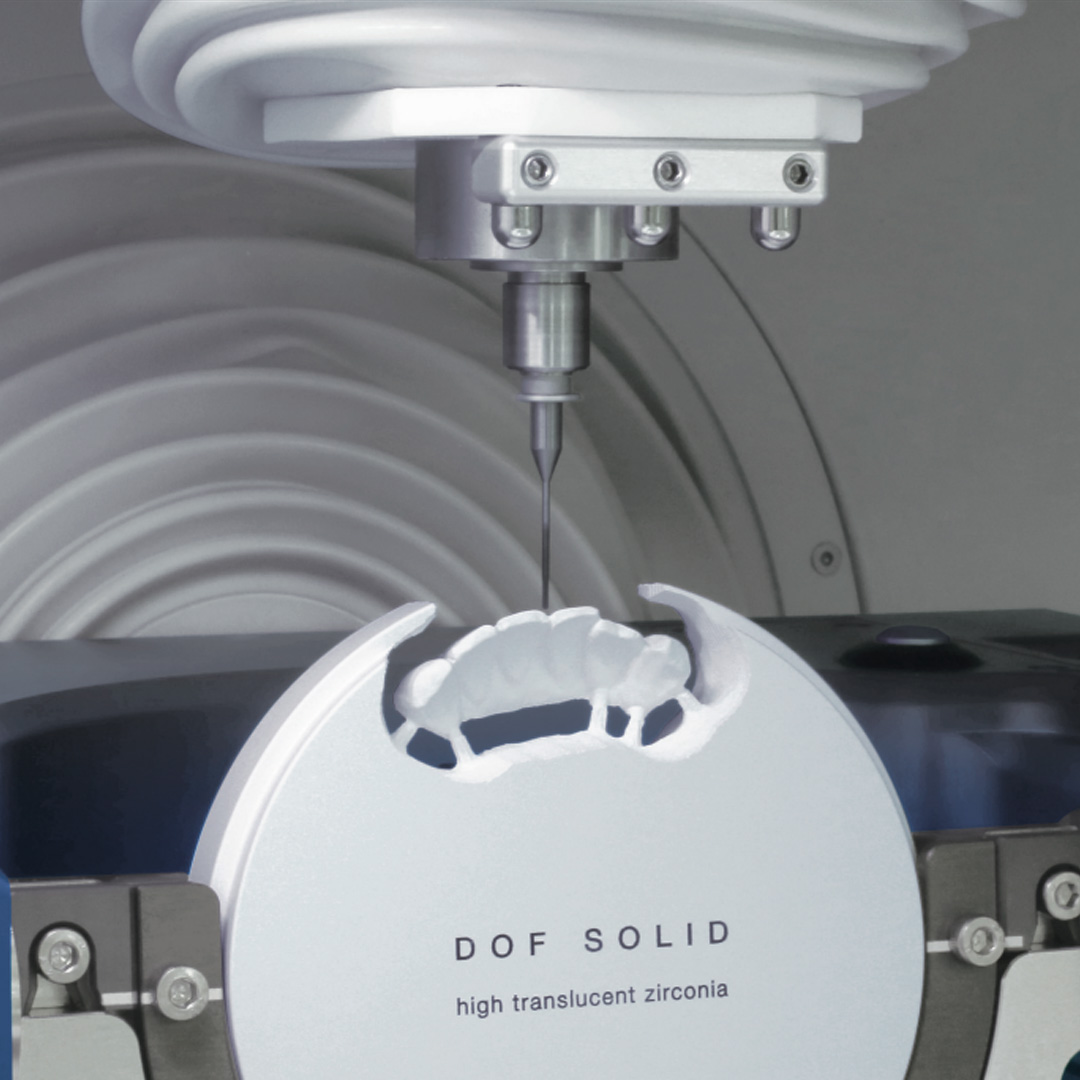

● Material Versatility: Capable of milling zirconia, wax, PMMA, hybrid ceramic, glass ceramic, and titanium with outstanding precision.
● Wet & Dry Functionality: Seamlessly transitions between wet and dry milling for maximum efficiency.

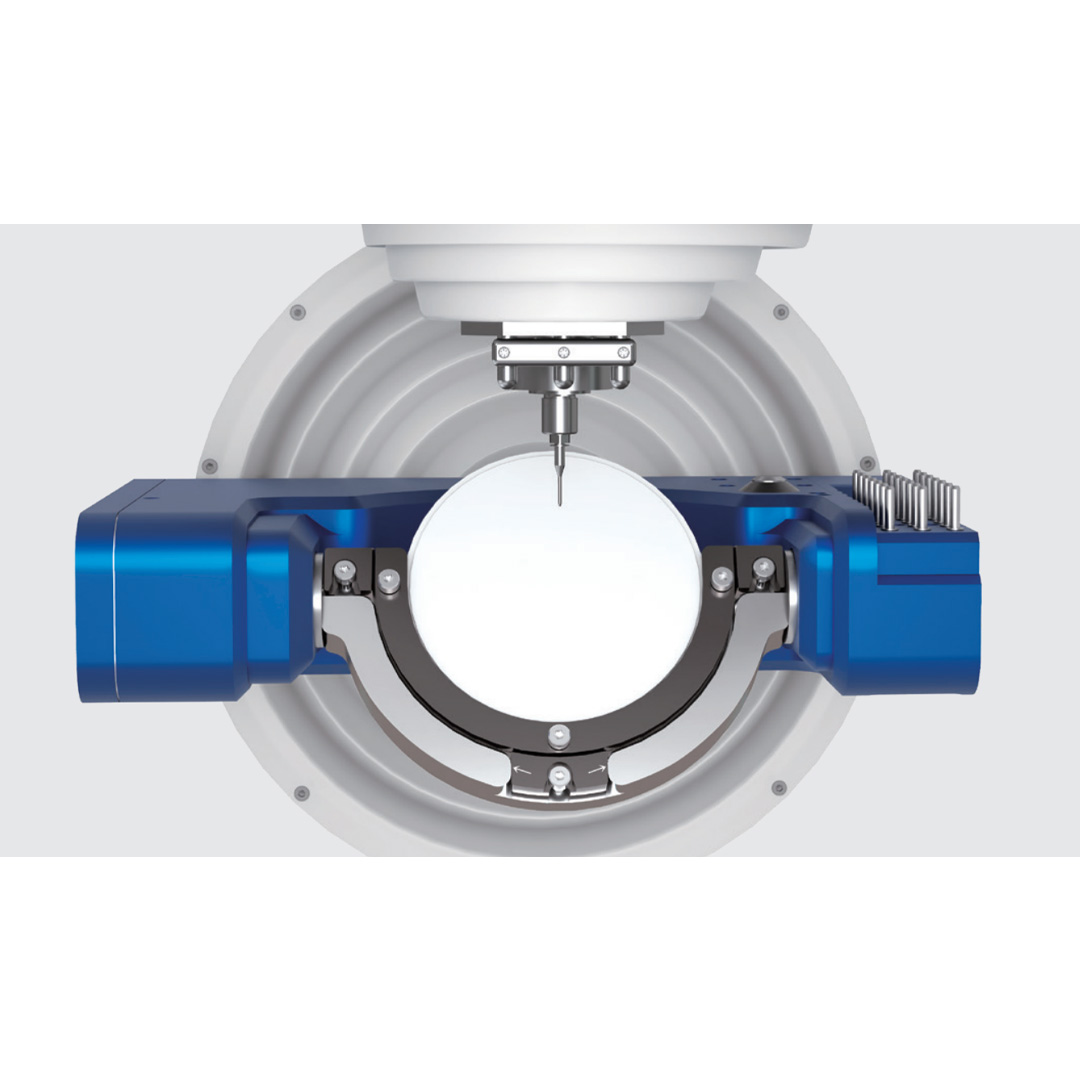

● 5-Axis Simultaneous Machining: Enables complex restorations with severe undercuts or multiple insertion angles.

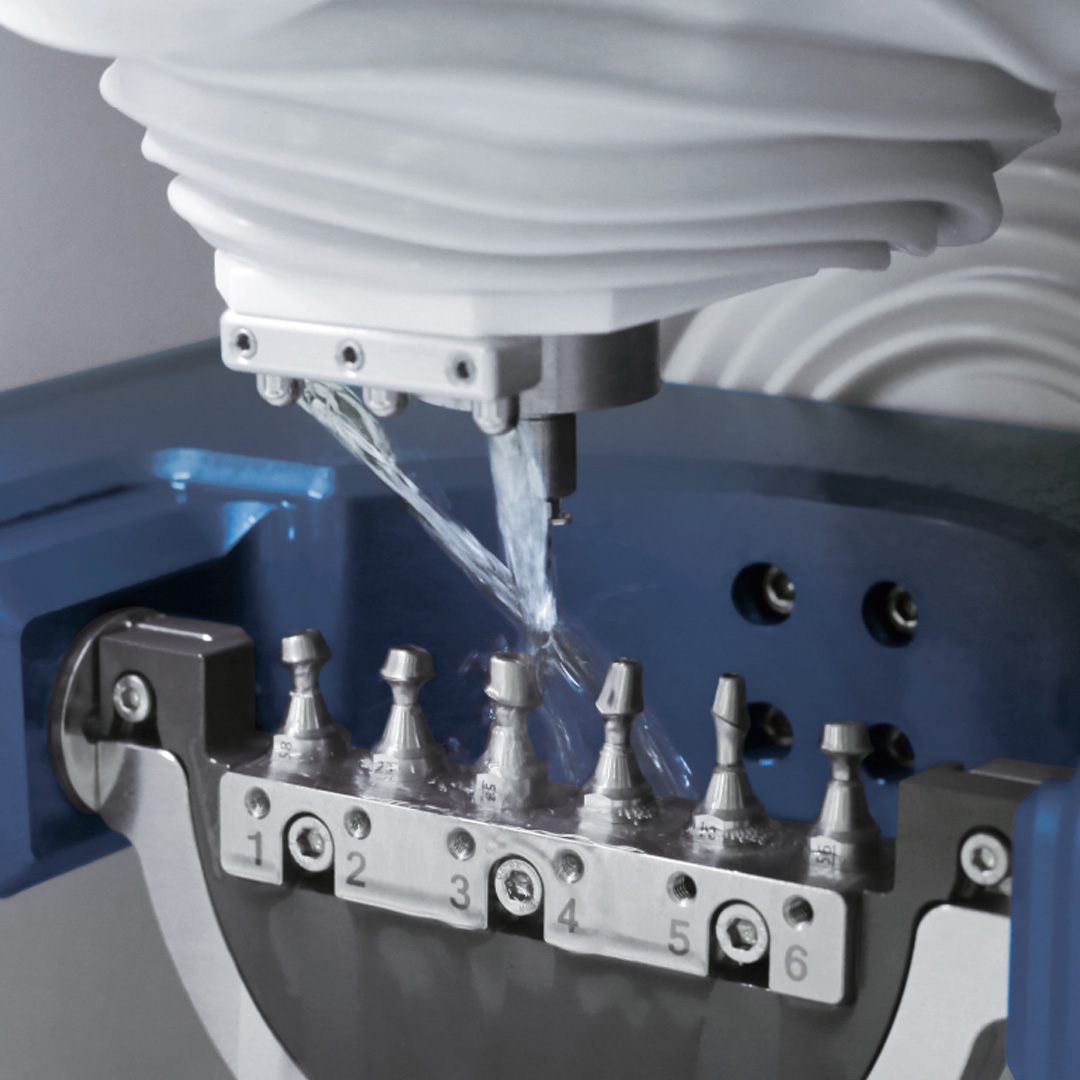

● One-Step Milling: Custom abutments and suprastructures can be milled together without the need for abutment scanning.

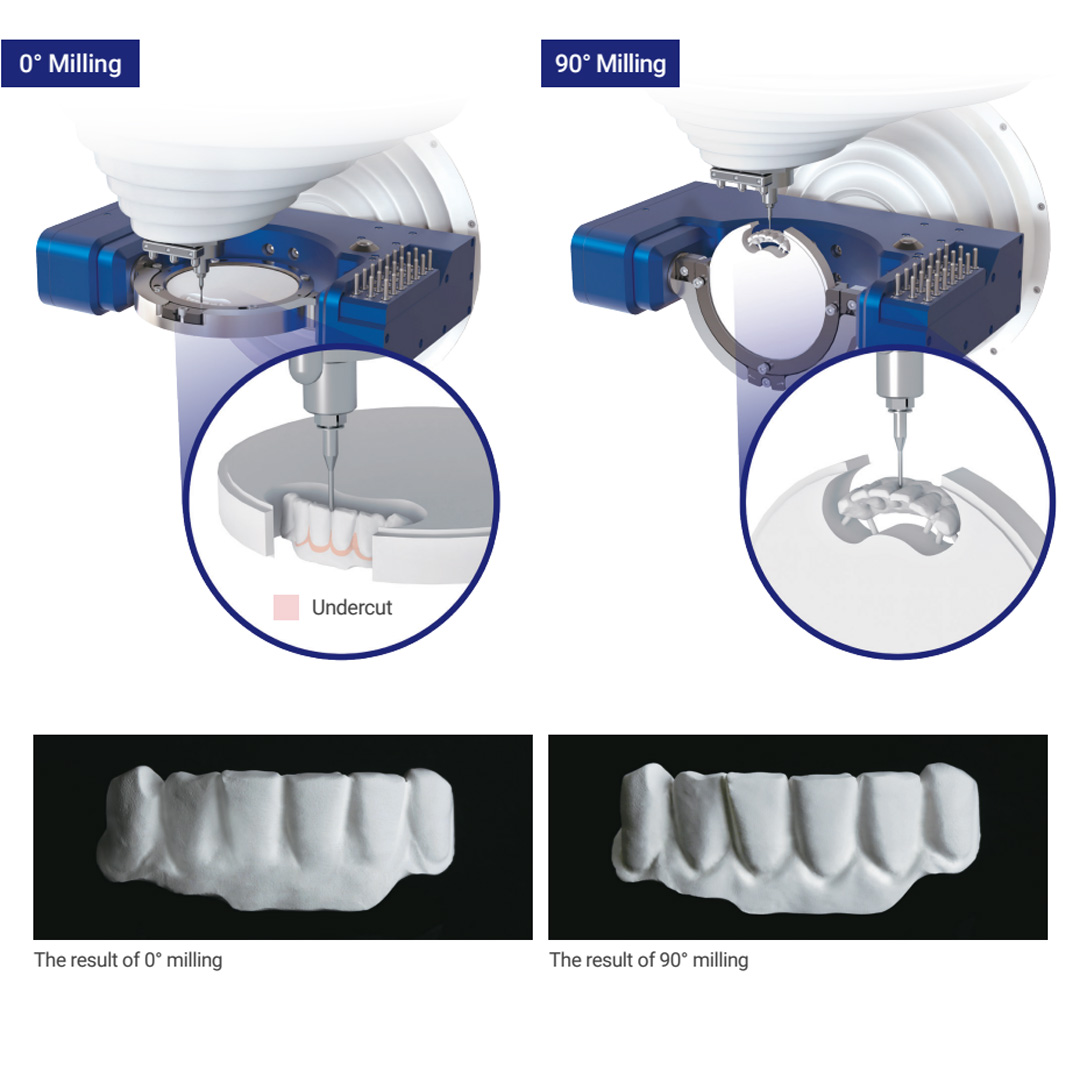

● 90° Milling Capability: Accurately reproduces the natural contours of anterior teeth for superior esthetics.
Key Benefits
● Integrated design – saves space and reduces installation complexity
● Supports a wide range of materials and applications
● Delivers precise, consistent, and reliable results
● Engineered for high performance and long-term stability
| Dimensions | |
|---|---|
| Machine | 440mm x 710mm x 660mm (W x H x D) |
| Table | 436mm x 1000mm x 660mm (W x H x D) |
| Weight | |
|---|---|
| Machine | 75kg |
| Table | 70kg |

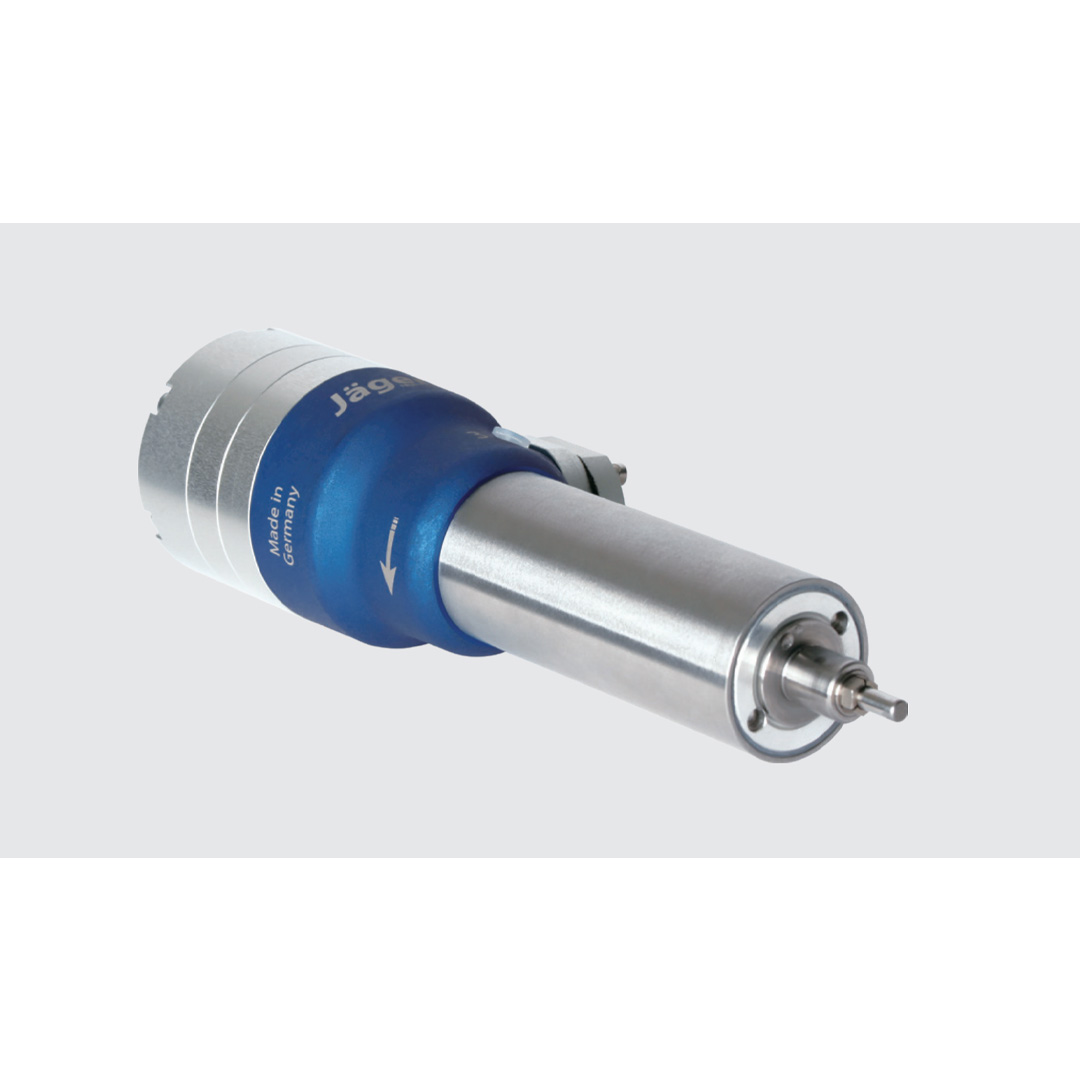

| Spindle | |
|---|---|
| Manufacturer | Jäger |
| Shank | 4ø |
| Maximum RPM | 100,000 rpm |
| Maximum Power | 0.75kw |
| Tool & Milling Capacity | |
|---|---|

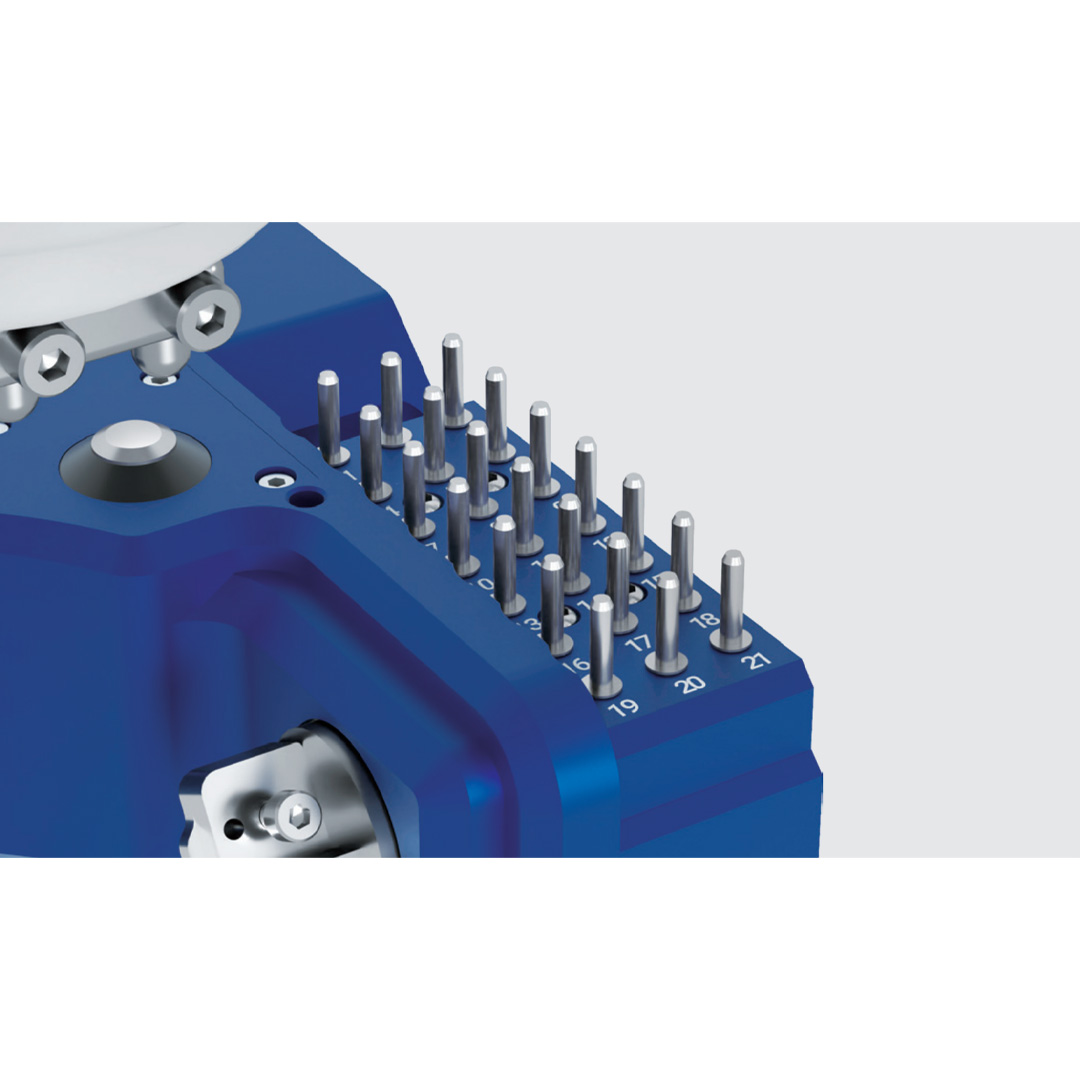

| Number of Tools Housed | 21 |

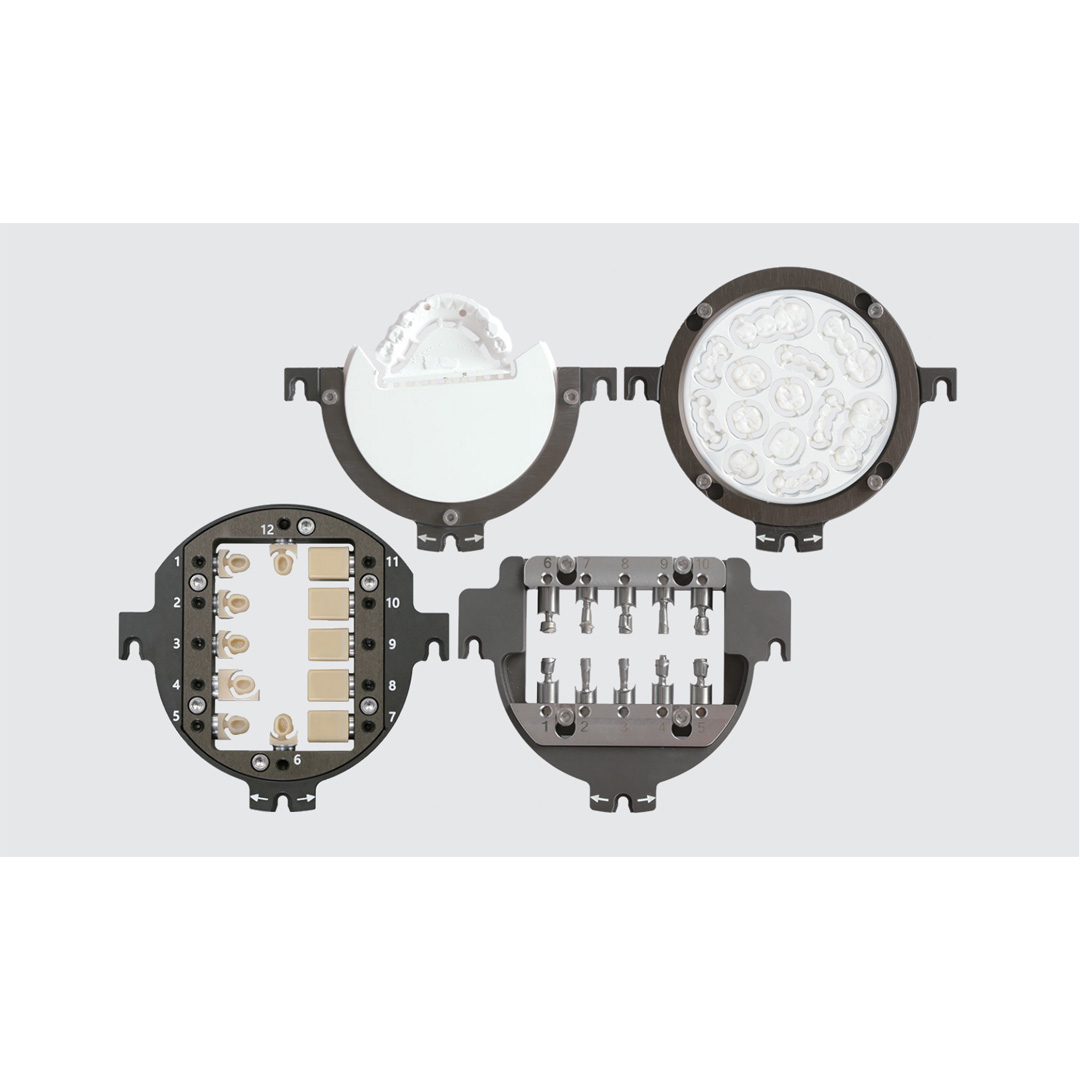

| Number of Pre-milled Simultaneous Milling | 10 |
| Number of Reverse Type Pre-milled Simultaneous Milling | 6 |
| Number of Glass Ceramic Simultaneous Milling | 6 |
| Number of Hybrid Ceramic Simultaneous Milling | 12 |
| Power Requirement | |
|---|---|
| Required Power | 1.5kw |
| Material Compatibility | |
|---|---|
| Compatible Materials | Zirconia, wax, PMMA, PEEK, composite, resin, hybrid ceramic, glass ceramic, pre-milled titanium abutment |
